Painted Side Walkway Industrial Steel Grating ZT302/30/50

Brand Name : TT

Model Number : ZT302/30/50

Certification : ISO 9000-2015

Place of Origin : Anping,china

MOQ : 3 tons

Price : Negotiable

Payment Terms : L/C T/T

Supply Ability : 100 TONS/DAY

Delivery Time : 3-10 work days

Packaging Details : Wooden Pallet/Steel Pallet Or As The Customar require

Product Name : Paint Steel Grating

Grating Standard : YB/T4001-2007

Raw Material : Q235/S235jr

Surface Treatment : Painting/non treatment

Size : As Per Drawing,commoned 32*5

Packing : Wooden or Steel Pallet

Contact Now

Painted Or Galvanized Heavy Duty Steel Grating , 555 / 40 /100 For Trench Cover

Description:

Painted steel bar grating is a series of carbon steel bearing bars joined to perpendicular cross bars at various intervals to form a load-bearing panel finished with one shop coat of paint.

The paint protects the finished grating product during transit while increasing its visibility, which can reduce on-the-job accidents.

Our business export more than 10years as a premium manufacturer and supplier of metal flooring and allied products in China.

We provides cost effective high quality flooring and safety products solutions, either fabricated to exact project specifications or standard products available immediately.

Steel Grating Specification:

No.	Item	Detailed Description
1	Bearing Bar	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
1	Bearing Bar	US standard: 1' ' x3/16' ' , 1 1/4' ' x3/16' ' , 1 1/2' ' x3/16' ' , 1' ' x1/4' ' , 1 1/4' ' x1/4' ' , 1 1/2' ' x1/4' ' , 1' ' x1/8' ' , 1 1/4' ' x1/8' ' , 1 1/2' ' x1/8' ' etc
2	Bearing Pitch	12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
2	Bearing Pitch	US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc
3	Cross Bar Pitch	38.1, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2' ' & 4' ' etc
4	Steel Grade	ASTM A36, A1011, A569, Q235, S235JR, S275JR, SS304, Mild steel & Low carbon steel, etc
5	Surface Treatment	Black, self colour, hot dip galvanized, painted, spray coating
6	Grating Style	Plain / Smooth, Serrated /teeth, I bar, serrated I bar
7	Grating Standard	China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88),
7	Grating Standard	UK: BS4592-1987, Australia: AS1657-1985, Japan: JIS

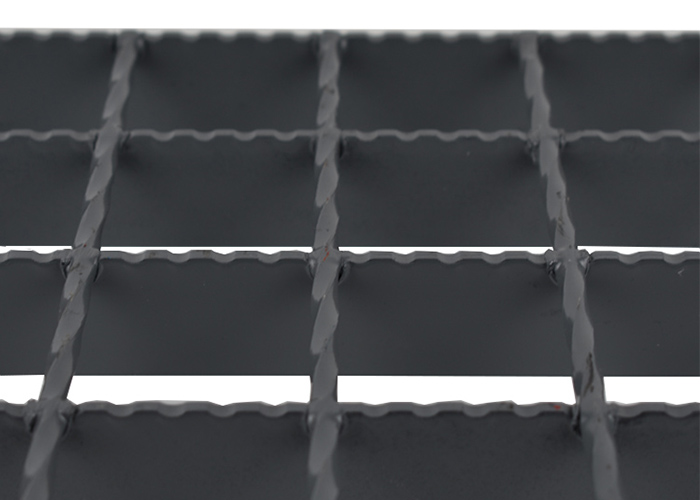

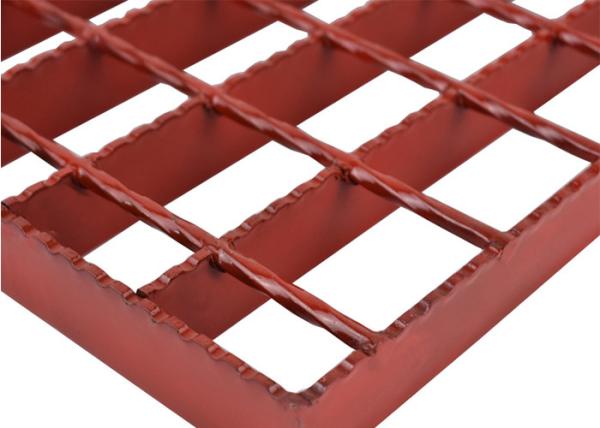

Grating Picture:

Painted Side Walkway Industrial Steel Grating ZT302/30/50
